Floor Junction Box

Features
  • Floor junction boxes supplied to match floor raceway widths and heights.
  • GI coated body with removable cover.
  • Used with floor raceways and barrier layouts.
  • Number of barriers depends on site requirements.
  • Available finishes: powder coating, painting, pre-galvanized, hot dip galvanized, aluminium and stainless steel.
Width Height Thickness
50mm 25/40/50 1.2/1.6mm/2mm/2.5mm
75mm 25/40/50 1.2/1.6mm/2mm/2.5mm
100mm 25/40/50/100 1.2/1.6mm/2mm/2.5mm
150mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
200mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
250mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
300mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
400mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
450mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
600mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
750mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
1000mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
1200mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
Cable Tray Finishing Specification
Powder Coating 50-60 Microns
Painting Available
Pre-Galvanized Regular 120Gsm / 340Gsm (on request)
Hot Dip Galvanized Regular 65Gsm / 75 to 110 Microns (on request)
Aluminium Available
Stainless Steel Available
Accessories

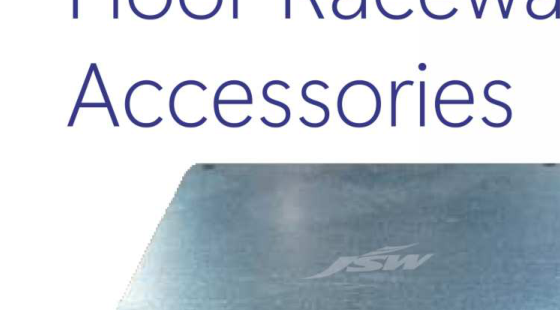

Floor Junction Box

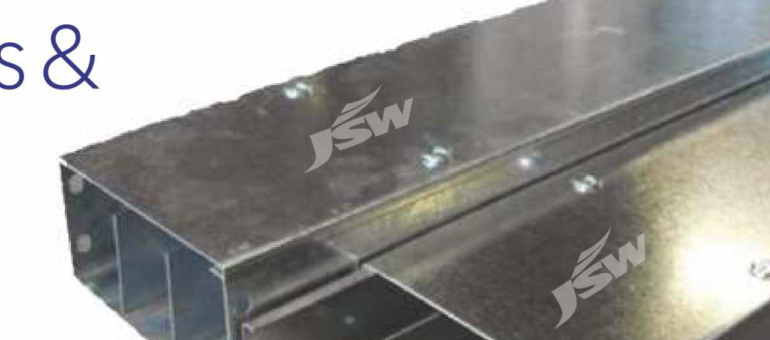

Matching Floor Raceway
