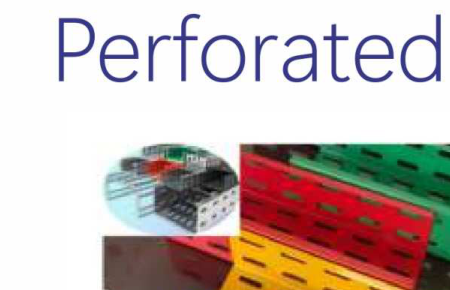

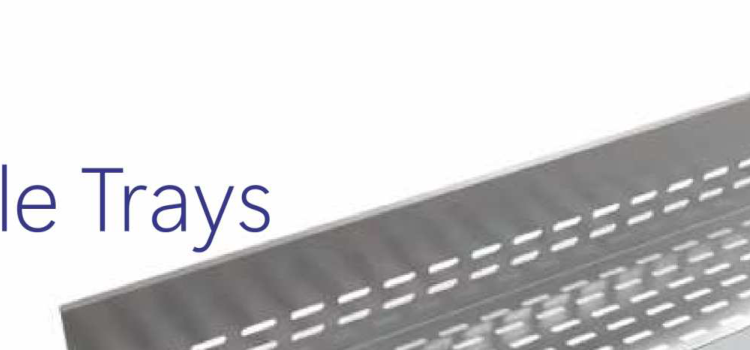

Perforated Cable Trays

Features
  • Regular standard length 2500mm.
  • On customer request length 2500mm (custom lengths available).
  • Coupler plate: 2 nos per tray.
  • Nut & bolt 8x15: 8 nos per tray with electro plating.
  • 1200mm width will be supplied in standard length of 1250mm.
  • Perforated trays are available with non-perforation cover.
  • Available finishes: powder coating, painting, pre-galvanized, hot dip galvanized, aluminium and stainless steel.
Width Height Thickness
50mm 25/40/50 1.2/1.6mm/2mm/2.5mm
75mm 25/40/50 1.2/1.6mm/2mm/2.5mm
100mm 25/40/50/100 1.2/1.6mm/2mm/2.5mm
150mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
200mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
250mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
300mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
400mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
450mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
600mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
750mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
1000mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
1200mm 40/50/75/100 1.2/1.6mm/2mm/2.5mm
Cable Tray Finishing Specification
Powder Coating 50-60 Microns
Painting Available
Pre-Galvanized Regular 120Gsm / 340Gsm (on request)
Hot Dip Galvanized Regular 65Gsm / 75 to 110 Microns (on request)
Aluminium Available
Stainless Steel Available

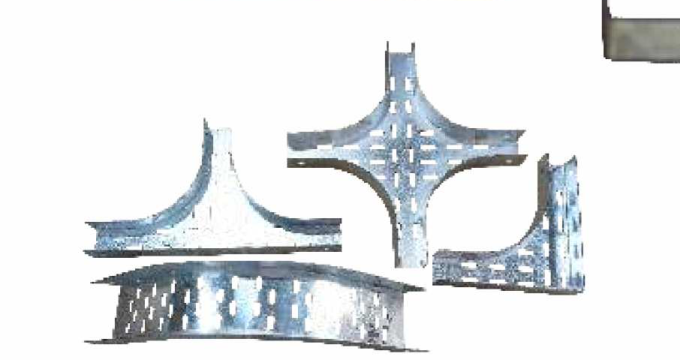

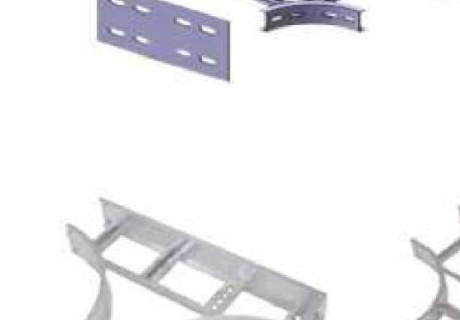

Accessories
Powder Coated Finishes
Straight Perforated Tray

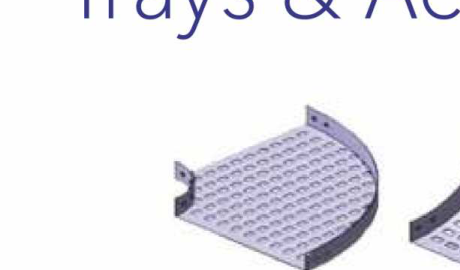

90 Degree Horizontal Bend

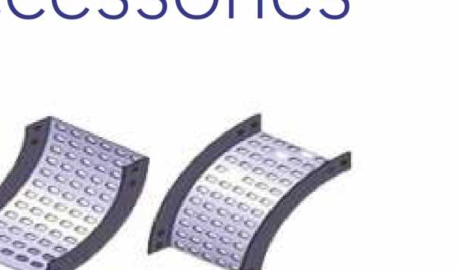

Vertical Internal / External Bend

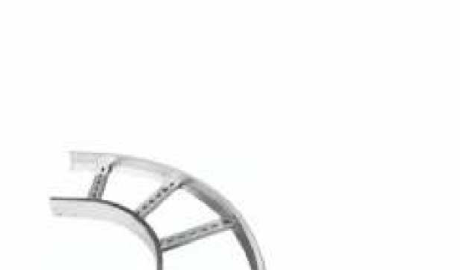

Ladder Horizontal Bend

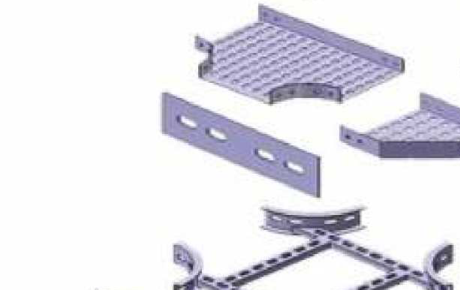

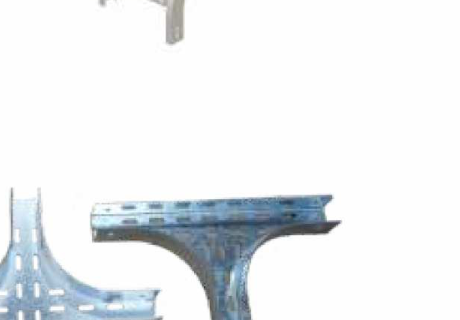

Equal Tee
Cross

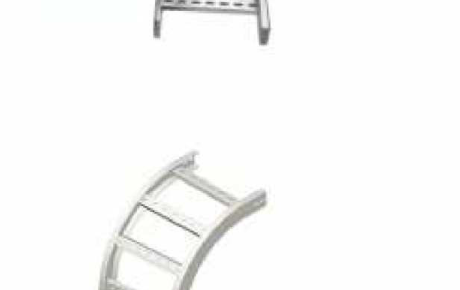

Ladder Vertical Bend

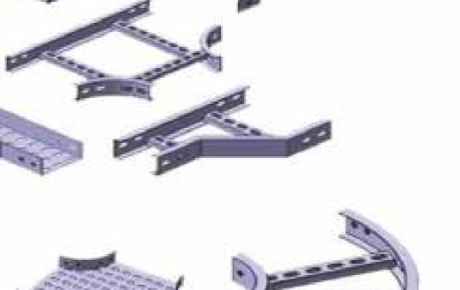

Ladder Tee

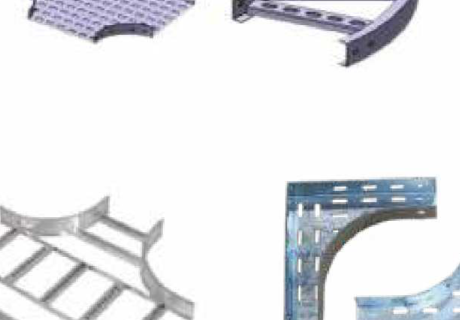

Ladder Cross
Reducer / Elbow

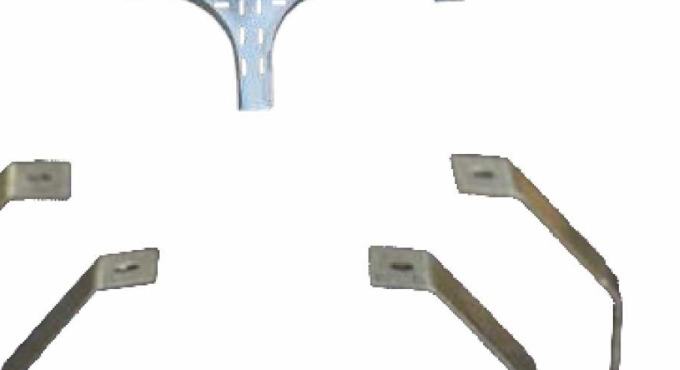

Support Bracket

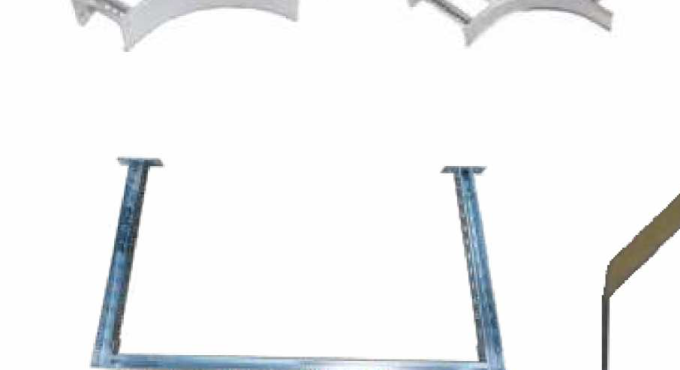

Hanger Clamp
Cover / Fitting
